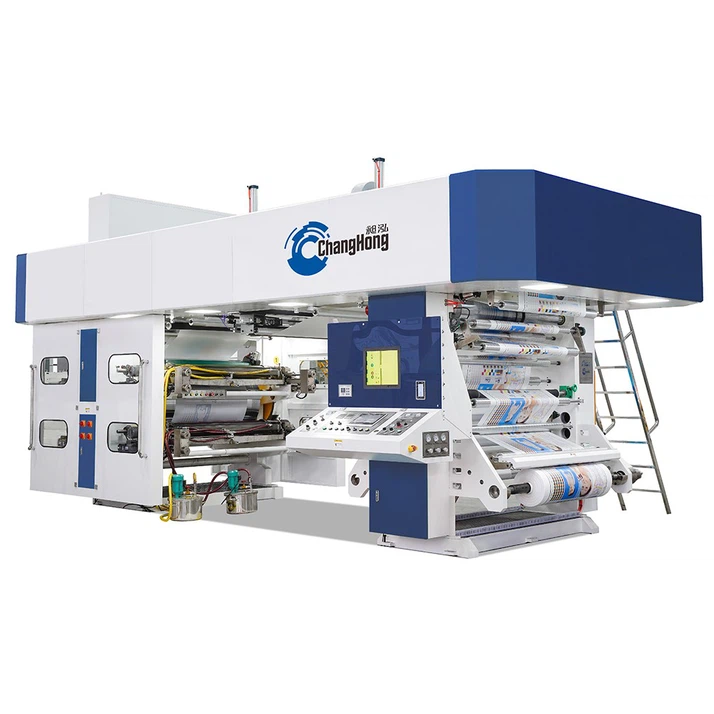

MODEL: CHCI-J Series
Max Machine Speed: 200m/min
Number of printing decks: 4/6/8
Drive Method: Gear Drive

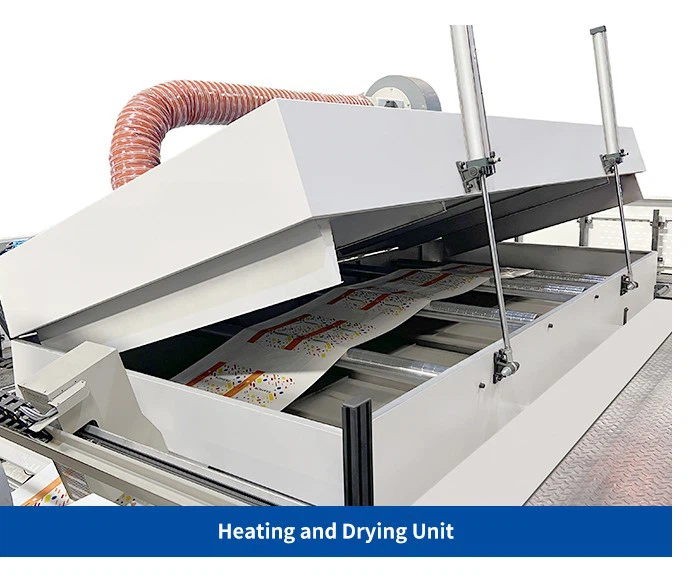

Heat source: Electrical heating
Electrical supply: Voltage 380V. 50 HZ.3PH or to be specified
Main Processed Materials: Films; Paper; Non-Woven; Aluminium foil; Laminates
Product Introduction
Economical CI Printing Machine is versatile and can flexo print various materials such as plastic film, paper, non-woven fabrics, etc. It can greatly reduce labor costs and is one of the first choices for customers to choose flexographic printing machines.
Parameter
| Model | CHCI-J (Customizable to fit production and market requirements) | |||
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm |
| Max. Machine Speed | 200m/min | |||
| Printing Speed | 200m/min | |||
| Max. Unwind/Rewind Dia. | Φ 800mm/Φ1200mm/Φ1500mm | |||
| Drive Type | Gear drive | |||
| Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||
| Ink | Water base ink or solvent ink | |||
| Printing length (repeat) | 350mm-900mm | |||
| Range Of Substrates | Film,PAPER,NONWOVEN, ALUMINUM FOIL | |||
| Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Features
1. High-speed printing: These machines can produce prints at a high speed, reducing printing time and increasing productivity.
2. High-volume printing: CI printing machines are designed to handle high-volume printing jobs, making them ideal for commercial printing.
3. Multicolor printing: These machines can print using multiple colors, allowing for high-quality, vibrant prints.
4. Reduced waste: CI printing machines are designed to minimize waste by using precise color registration and ink supply systems.
5. Flexibility: CI printing machines can print on a variety of substrates, including paper, plastic, and non woven.
