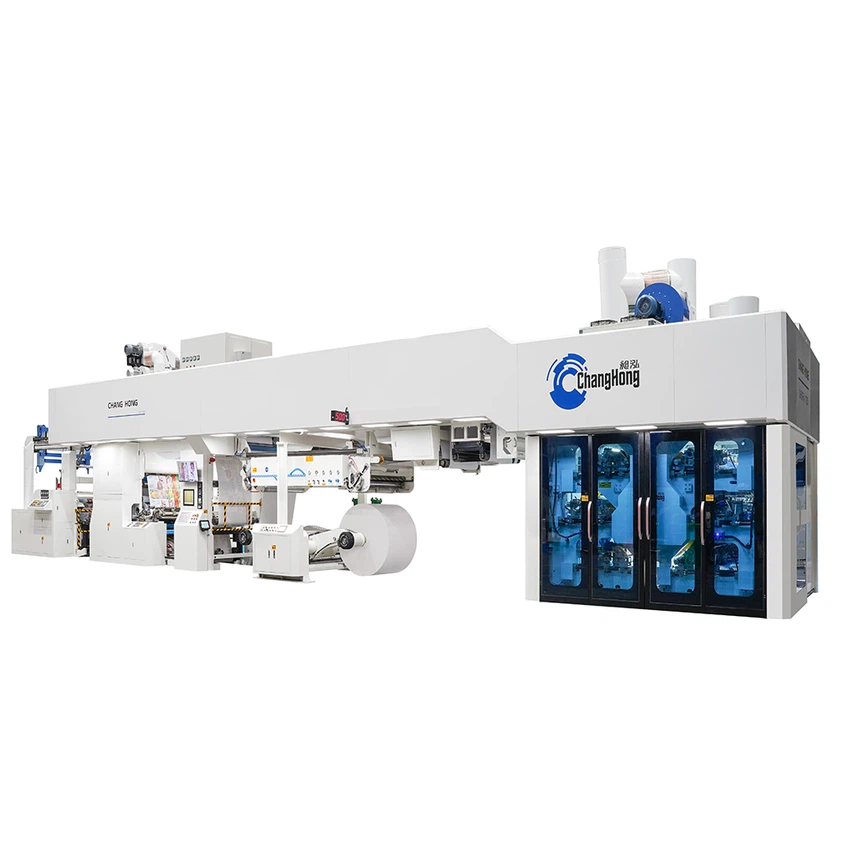

Wide Web Flexo Press

Model: CHCI-F series
Maximum machine speed: 500 meters/minute
Number of printing stations: 4/6/8/10
Drive mode: gearless electronic shaft transmission
Heat source: gas, steam, hot oil, electric heating
Power supply: Voltage 380V. 50 Hz. 3PH may be specified
Main processing materials: film, paper; non-woven fabrics; aluminum foil; laminates

wide web flexo press is also often referred to as flexographic printing, a that uses a flexographic plate and transfers ink through an anilox roller to print. It abandons the traditional mechanical gear drive and adopts servo The phase control of each color printing roller can not only improve the speed but also ensure the accuracy

Parameter

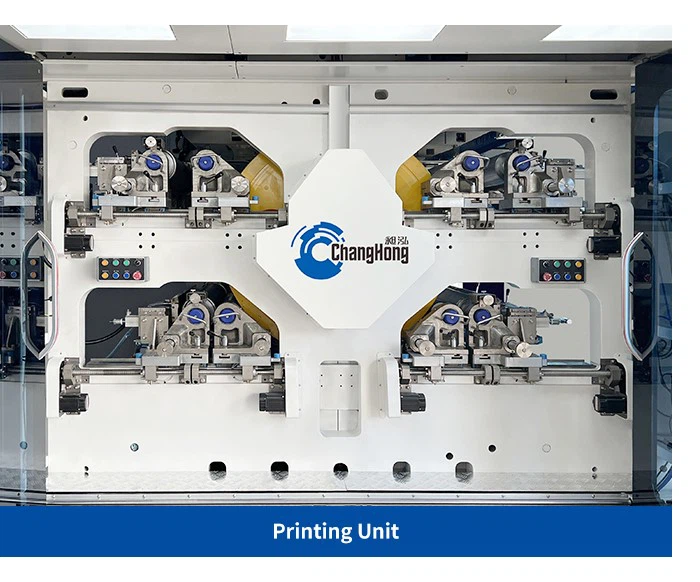

Printing color	4/6/8/10 color
Max .Machine Speed	500m/min
Max. Printing Speed	450m/min
Max. Web Width	1300mm
Max.Printing Width	1270mm
Printing Length (Stepless Difference Adjustment)	370～1200mm
Thickness Of Printing Plate	2.54mm
Maximum Unwinding Diameter	Φ1500mm
Maximum Rewinding Diameter	Φ1500mm

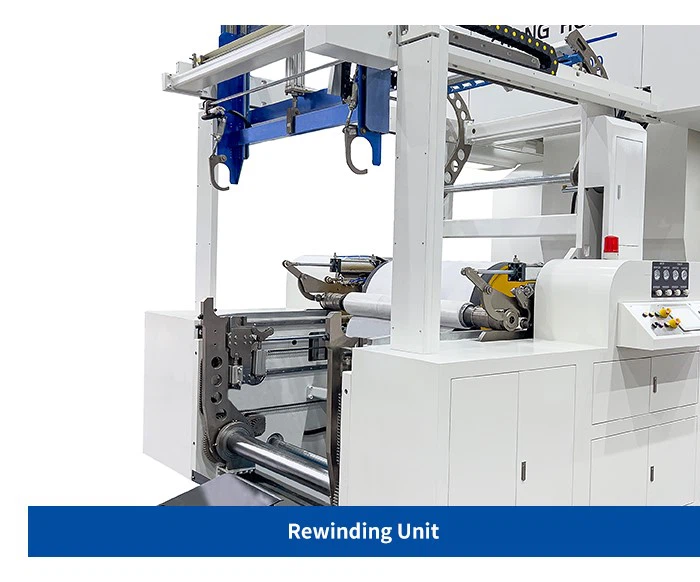

Unwind&Rewind Card loading form	surface friction type Turret double station winding & unwinding,Equipped with servo motor
Paper core in Unwind &Rewind	3"
Register error	≤±0.1mm
Tension Range	100～1500N
Oven Maximum Temperature	Max.80℃(Room Temperature 20 ℃)
Speed Of Nozzle From Drying Between Colors	15～45m/s

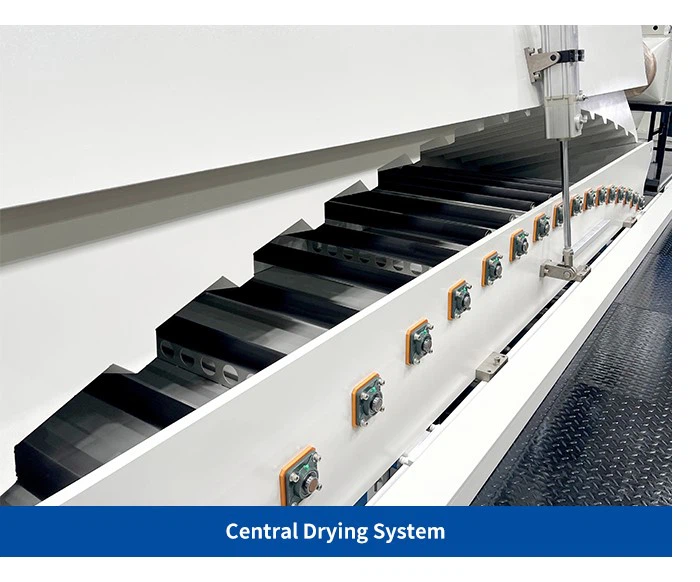

Speed Of Nozzle From Central Drying	5～30m/s
Heating mode	Electric heating
Machine size	About LWH=15M * 5.5M* 5.5M

Machine Features

1. Gearless CI flexo printing press to shorten the printing preparation time and save printing consumables.

2. wide web flexo press is easy to operate and improve printing efficiency and quality of printed products.

3. User Interface Humanization

4. Control the servo motor for rewinding and unwinding and feeding and discharging paper to keep constant tension in the printing room.

5. High precision: Full servo CI flexo presses utilize advanced servo motor technology to provide high precision printing and precise control of printing processes.

6. High speed: These presses can operate at high speeds of up to 500 meters per minute, ensuring faster turnaround times and increased productivity.

7.Intelligent control system: Full servo CI flexo presses come equipped with a user-friendly control system that enables operators to easily set and adjust printing parameters.

8.UV curing system: UV curing systems are integrated into full servo CI flexo presses to ensure fast and effective curing of inks, resulting in high-quality prints.

9.Energy efficiency: CI flexo presses feature an energy-efficient design, which reduces power consumption and operating costs, making them an environmentally friendly option.
