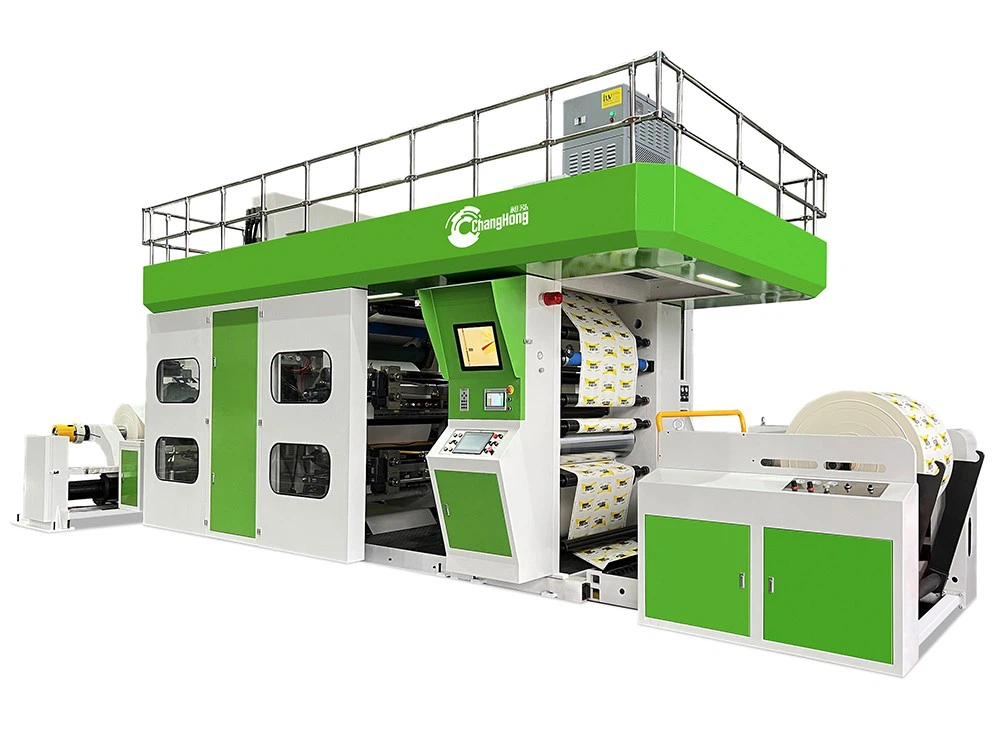

The paper cup flexo printing machine Ink evenly, strong mechanical stability and long service life during use. Mainly used for paper cups, paper bags, films and other products.
Product Introduction
The paper cup flexo printing machine uses a soft polymer resin plate in the printing process, and the plate making cycle is short. Uniform inking, strong mechanical stability and long service life during use. Mainly used in, paper cups
Parameter
| Model | CHCI4-600J | CHCI4-800J | CHCI4-1000J | CHCI4-1200J |
| Max. Web Value | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Value | 600mm | 800mm | 1000mm | 1200mm |
| Max. Machine Speed | 250m/min | |||
| Printing Speed | 200m/min | |||
| Max. Unwind/Rewind Dia. | φ800mm | |||
| Drive Type | Gear drive | |||
| Plate Thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||
| Ink | Water base ink or solvent ink | |||
| Printing Length (repeat) | 350mm-900mm | |||
| Range of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon,PAPER,NONWOVEN | |||
| Electrical Supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Features
1. There are many suitable materials for flexographic printing machine, and inks can be used on various paper-based and non-paper-based materials such as paper, plastic film, textiles, vacuum aluminized paper (gold, silver cardboard), metal foil, cellophane, etc. For printing, which meets the requirements of green printing.
2. Less waste of machine adjustment, high printing speed, high output efficiency.
3. High-speed, high-efficiency, large-scale production suitable for large-scale orders, is a powerful weapon for large-scale printing plants to improve market competitiveness.
