Model: CHCI-J series
Maximum machine speed: 250 meters/minute
Number of printing stations: 4/6/8
Driving mode: gear transmission
Heat source: electric heating
Power supply: voltage 380V. 50HZ.3PH or can be specified
Main processing materials: film, paper; non-woven fabrics; aluminum foil;
Product Introduction
Plastic film flexo printing machine mainly prints various film materials such as Bopp, Pet, Pe, Shrink film, etc. The use of ci flexo printing machine for zero-pressure printing not only reduces the vibration and wear of the machine, but also reduces the wear of the plate. The ink level is clear and the printed product is brighter.
Parameter
MODEL | CHCI-J Series (Can be customized according to customer production and market requirements) | |||||
Number of printing decks | 4/6/8 | |||||
Max Machine Speed | 250m/min | |||||
Printing Speed | 200m/min | |||||
Printing Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
Roll Diameter | Φ800/Φ1000/Φ1500 (optional) | |||||
Ink | water based / slovent based / UV/LED | |||||
Repeat Length | 350mm-900mm | |||||
Drive Method | Gear drive | |||||
Main Processed Materials | Films; Paper; Non-Woven; Aluminium foil; Laminates | |||||
Characteristic
(1) High-precision registration technology.
(2) The fully enclosed double scraper inking system has good sealing performance and is of great benefit to hygiene and environmental protection. Suitable for high speed operation.

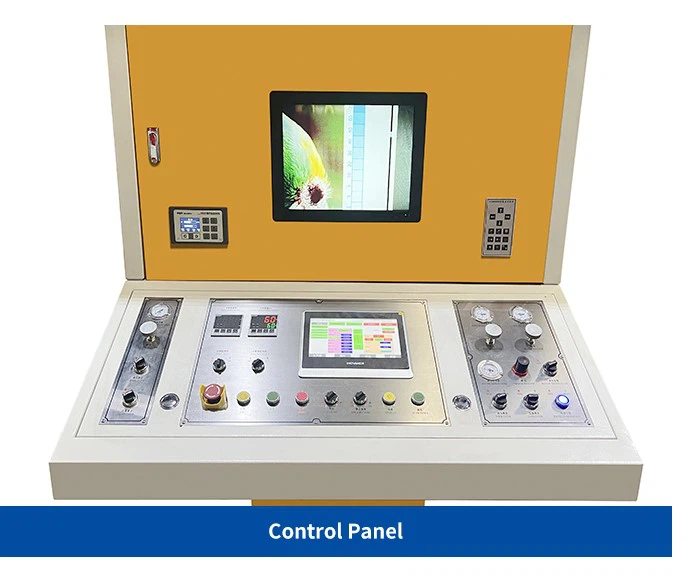

(3) The central control system is centrally controlled, easy to operate, and greatly improves production efficiency.
(4) Using sleeve technology for plate loading and anilox roller, the work efficiency is greatly improved.
(5) Plastic film flexo printing machine the electronic shaft system is used to independently equip each power unit of the printing press with servo drives, and the drives communicate with each other to realize the control of color registration and tension during the operation of the equipment, which is a highly intelligent drive scheme
Application Field
Plastic film flexo printing machine has a wide range of printing fields, mainly used in medical, food, daily necessities and other industries.
