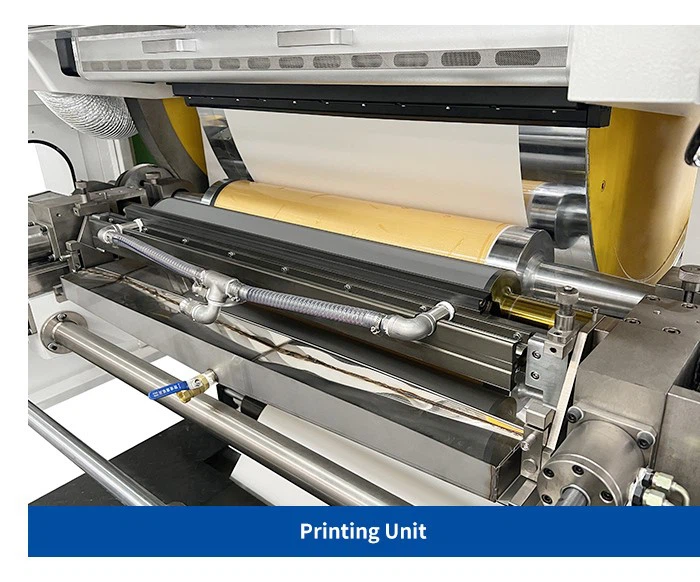

The printing components of ci flexo machine are mainly composed of central embossing roller, flexographic roller, anilox roller, doctor blade device, ink supply system, pressure regulating system, color registration system and drying device.

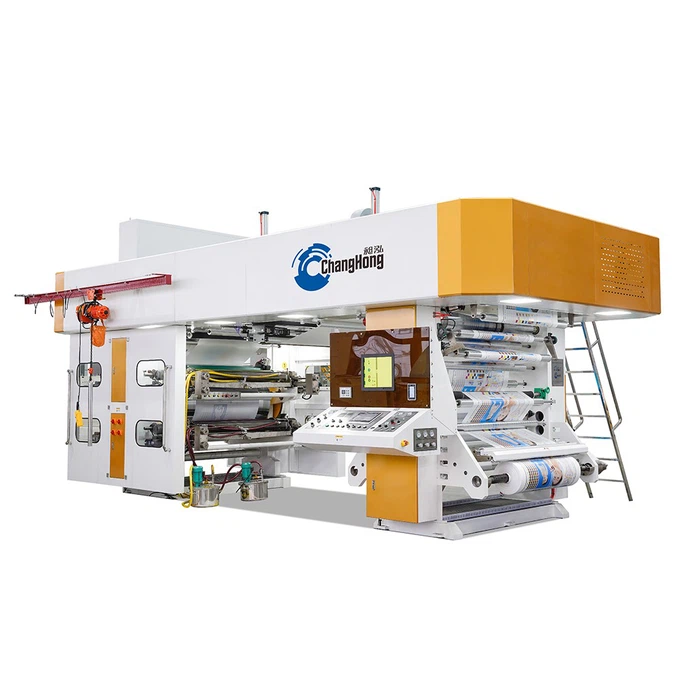

Product Introduction
All printed units of the ci flexo machine share a central impression cylinder. The overprinting accuracy of the printed matter is high, and the multi-color printing can be completed in one pass on the impression cylinder. Suitable for paper, aluminum foil, plastic film, non-woven fabric and other materials.
Parameter
| MODEL | CHCI-J Series (Can be customized according to customer production and market requirements) | |||||
| Number of printing decks | 4/6/8 | |||||
| Max Machine Speed | 250m/min | |||||
| Printing Speed | 200m/min | |||||
| Printing Width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
| Roll Diameter | Φ800/Φ1000/Φ1500 (optional) | |||||
| Ink | water based / slovent based / UV/LED | |||||
| Repeat Length | 350mm-900mm | |||||
| Drive Method | Gear drive | |||||
| Main Processed Materials | Films; Paper; Non-Woven; Aluminium foil; Laminates | |||||
Machine Features

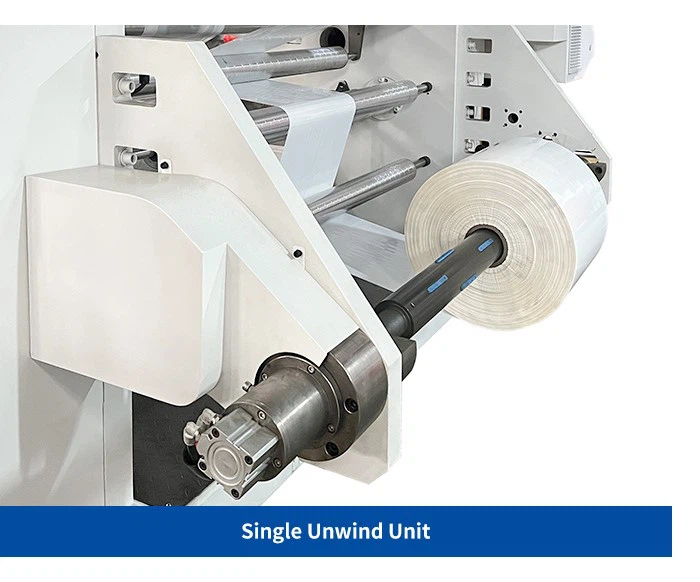

1. ci flexo machine automatic non-stop loading and unloading, the non-stop feeding speed can reach 200 m/min;

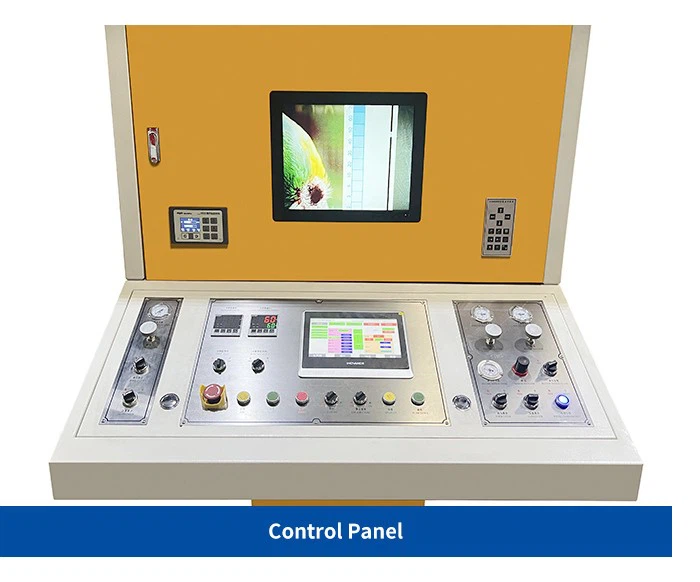

2.The whole machine adopts PC and variable frequency drive control system.
3.Fully automatic computer automatic color registration, high-definition color still picture monitoring.
4.High-precision ceramic anilox roller inking system, fully enclosed doctor blade scraping ink.

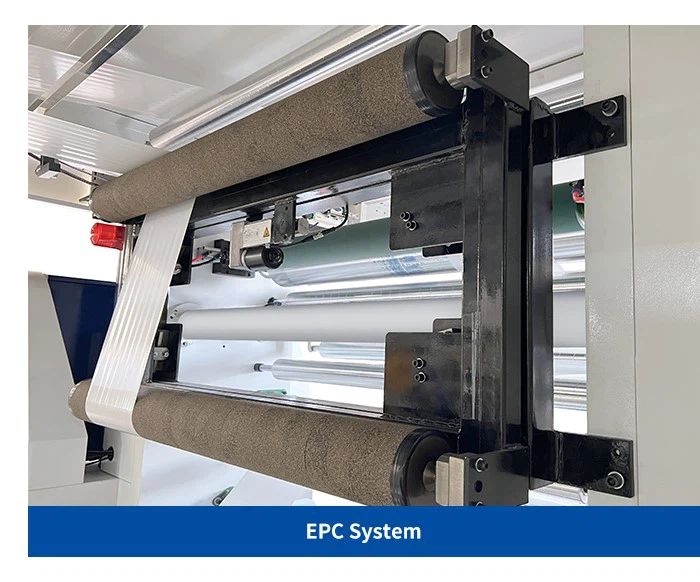

5.High-performance correction system to ensure the linear stability of the substrate running process and the end face uniformity of the finished winding product
6.Independent hot air electric heating drying unit, can also choose heat conduction oil or steam heating method.
