MODEL: CHCI-F Series
Max Machine Speed: 500m/min
Number of printing decks: 4/6/8/10
Drive Method: Gearless electronic shaft driv
Heat source: Gas, Steam, Hot oil, Electrical heating
Electrical supply: Voltage 380V. 50 HZ. 3PH or to be specified
Main Processed Materials: Films; Paper; Non-Woven; Aluminium foil; Laminates
Product Introduction
Gearless flexo printing press is a flexographic printing equipment for the production of deformable materials such as plastic films and non-woven fabrics. Adopt servo drive control, environmental protection water-based ink, low pollution. Gearless CI flexo printing press has perfect functions, low production cost and simple operation, which can meet the production needs of customers to the gre
Parameter
| TECHNICAL SPECIFICATIONS | ||||
| Model | CHCI8-600F | CHCI8-800F | CHCI8-1000F | CHCI8-1200F |
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 520mm | 720mm | 920mm | 1120mm |
| Max. Machine Speed | 500m/min | |||
| Printing Speed | 450m/min | |||
| Max. Unwind/Rewind Dia. | φ800mm (Special size can be customized) | |||
| Drive Type | Gearless full servo drive | |||
| Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||
| Ink | Water base ink or solvent ink | |||
| Printing length (repeat) | 400mm-800mm (Special size can be customized) | |||
| Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN | |||
| Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Performance Characteristics
1. Gearless flexo printing press the center embossing roller adopts double-wall constant temperature cooling cycle design.

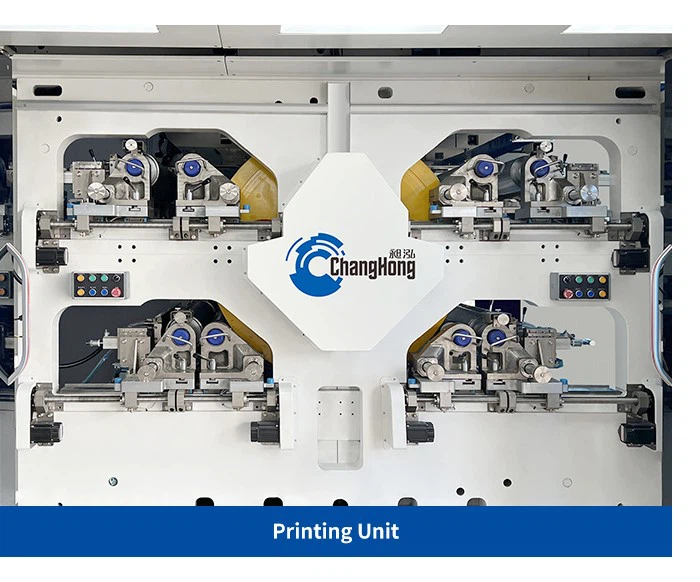

2. Using extra-thick rack wall panel printing station to work stably.
3. New independent drying design between colors, better drying effect.
4. Using quick-replaceable sleeve type rolls and anilox rolls.

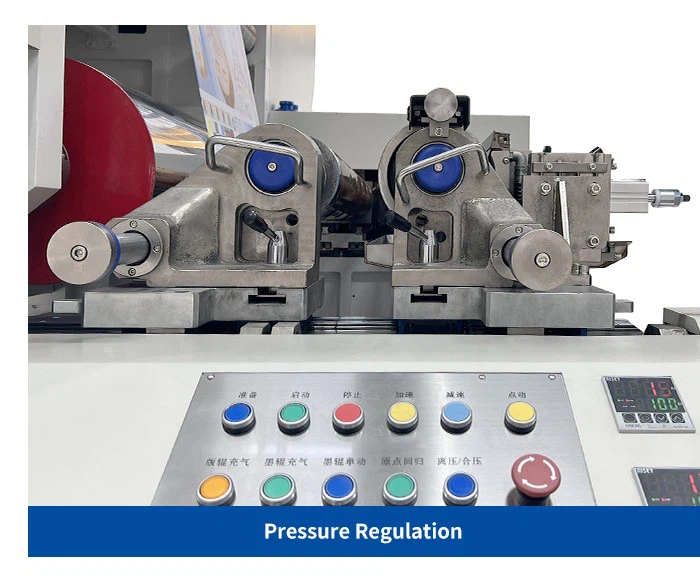

5. Pressure of plate roll and anilox roll are controlled by servo motor, easy to operate.

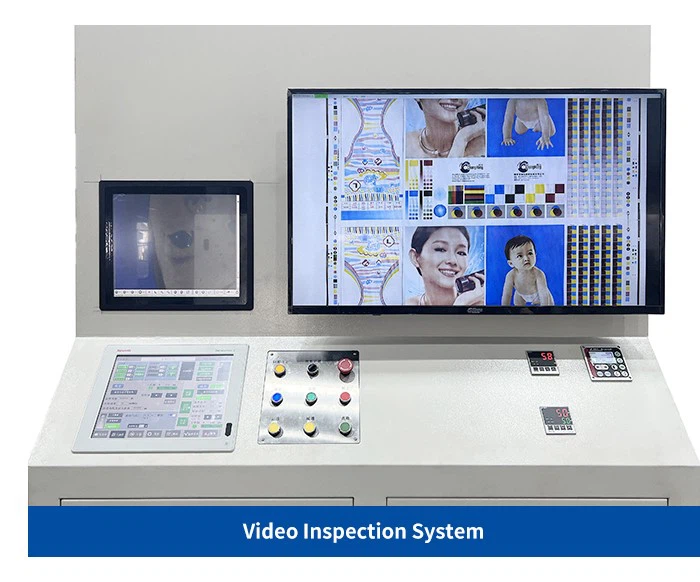

6. Install the automatic overprinting system with pre-overprinting function, which can be printed when the machine is turned on, saving costs.

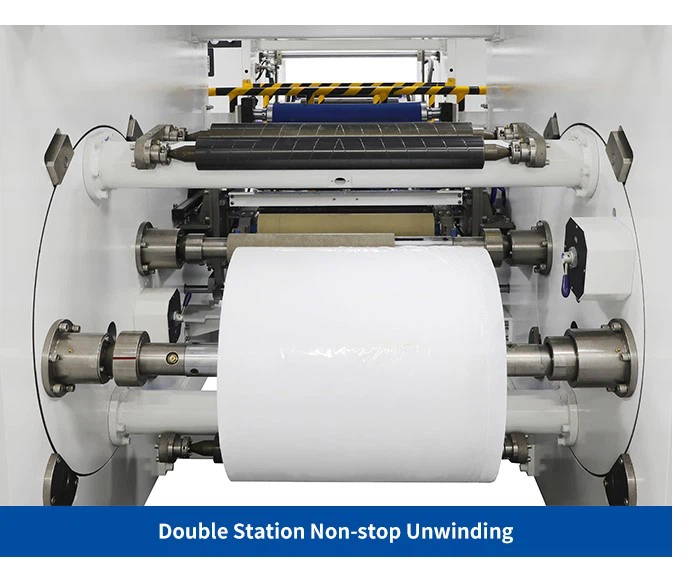

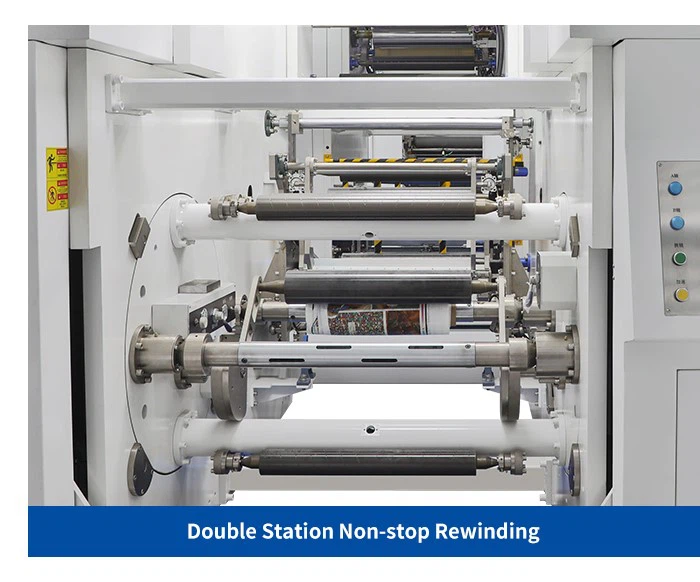

7. Equipped with automatic rewinding and unwinding function without stopping to promote production and reduce waste.
8. Equipped with an embracing multi-electrode coron.
