MODEL: CHCI-F Series
Max Machine Speed: 500m/min
Number of printing decks: 4/6/8/10
Drive Method: Gearless electronic shaft driv
Heat source: Gas, Steam, Hot oil, Electrical heating
Electrical supply: Voltage 380V. 50 HZ. 3PH or to be specified
Main Processed Materials: FFS;
Product Introduction

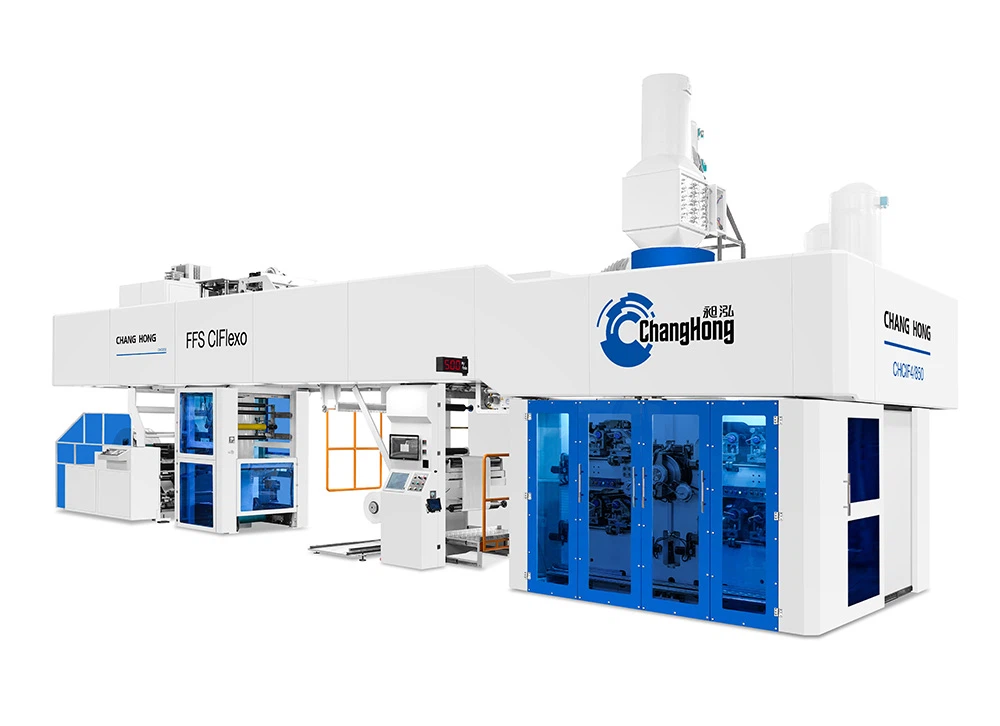

The FFS heavy-duty film flexo printing machine is an outstanding piece of equipment that offers several advantages to businesses in the packaging industry. This advanced technology is designed to print high-quality and durable prints on various types of films such as BOPP, LLDPE, and HDPE, making it an ideal choice for manufacturers of heavy-duty bags, industrial sacks, and flexible packaging solutions.
Parameter
| TECHNICAL SPECIFICATIONS | ||||
| Model | CHCI4-600F | CHCI4-800F | CHCI4-1000F | CHCI4-1200F |
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 520mm | 720mm | 920mm | 1120mm |
| Max. Machine Speed | 500m/min | |||
| Printing Speed | 450m/min | |||
| Max. Unwind/Rewind Dia. | φ800mm (Special size can be customized) | |||
| Drive Type | Gearless full servo drive | |||
| Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||
| Ink | Water base ink or solvent ink | |||
| Printing length (repeat) | 300mm-800mm (Special size can be customized) | |||
| Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN;FFS | |||
| Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Features
One of the key features of this machine is its robust design, which allows it to handle even the most demanding printing jobs with ease.
The FFS Heavy-Duty Film Flexo Printing Machine also boasts advanced print control technology that ensures precise and accurate printing results. It's equipped with a highly sensitive sensor system that can detect even the slightest variation in print quality and make real-time adjustments to ensure consistent and high-quality output.

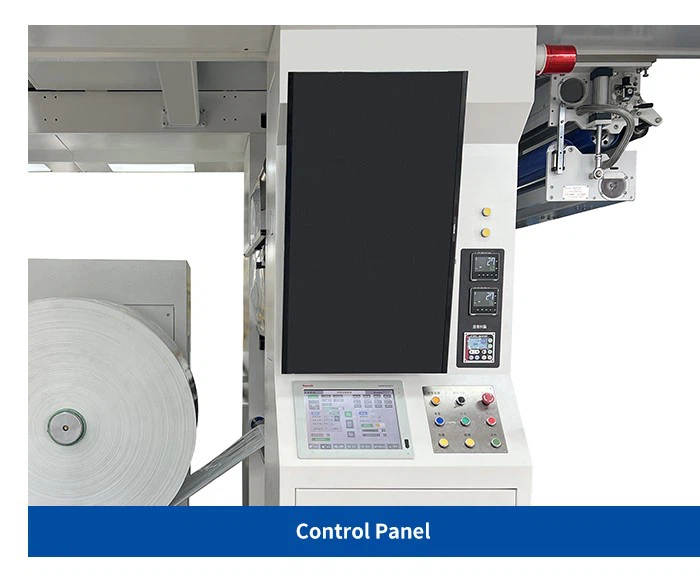

The machine is also equipped with an intuitive interface that makes it easy to operate, even for users with minimal experience in printing. It offers a range of customizable settings that can be adjusted to meet the specific requirements of each printing job, ensuring maximum efficiency and productivity.
One of the key features of FFS Film Flexo Printing Machine is its high-speed printing capabilities. It can print up to 500 meters per minute, which makes it an ideal tool for high-volume printing.
