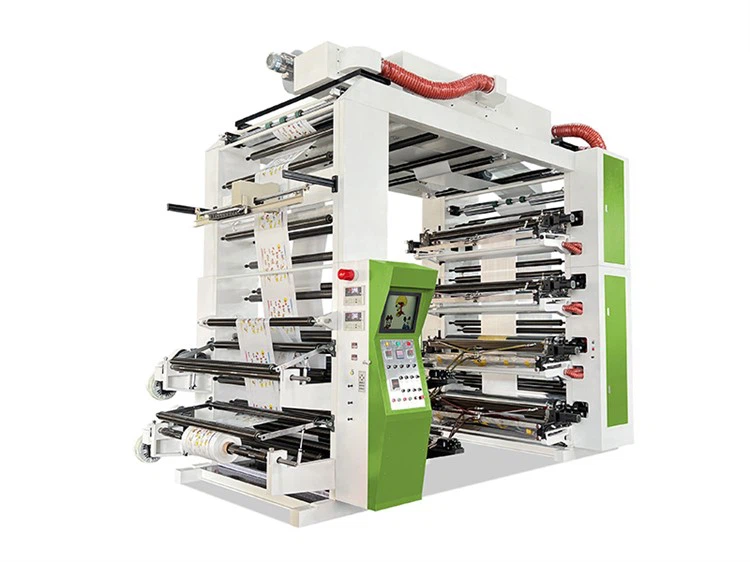

Plastic film printing machine is currently the most widely used printing machine, in additi
Product Introduction
Plastic film printing machine is the simplest and cheapest of the three printing machines, and the plate-making speed is relatively fast. At present, it is the most widely used Flexo printing machine with three structures.
on to the speed of plate making, the price is very cheap
Machine Parameters
TECHNICAL SPECIFICATIONS | ||||
Model | CH4-600H | CH4-800H | CH4-1000H | CH4-1200H |
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm |
Max. Machine Speed | 120m/min | |||
Printing Speed | 100m/min | |||
Max. Unwind/Rewind Dia. | φ800mm | |||
Drive Type | Gear drive | |||
Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||
Ink | Water base ink or solvent ink | |||
Printing length (repeat) | 300mm-1000mm | |||
Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN | |||
Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Machine Features
① Flexible printing plate uses polymer resin material, which is soft, bendable and elastic specialty.
② The plate-making cycle is short and the cost is low.
③ Wide range of printing materials.
④ High production efficiency and short production cycle.
⑤ Plastic film printing machine equipment structure is simple and easy to adjust and maintain.
⑥ The raw materials and production process used in production are environmentally friendly and have no pollution discharge, which are especially suitable for the green environmental protection requirements of pharmaceutical food packaging and other products.
