Product Introduction

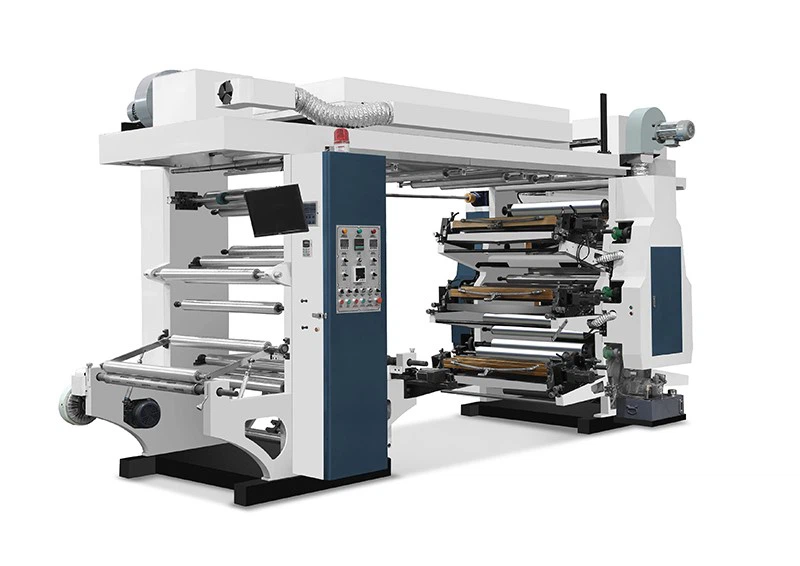

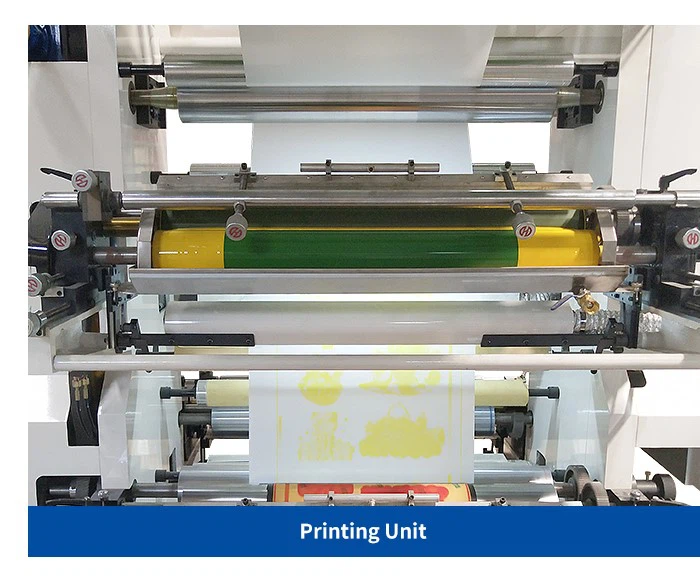

Chang Hong Stack type Plastic bag flexo printing machine is a machine that assembles multiple powerful printing units in a layer-by-layer combination. Each printing unit has its own corresponding printing cylinder, which occupies a small area.
Parameter
TECHNICAL SPECIFICATIONS | ||||
Model | CH6-600H | CH6-800H | CH6-1000H | CH6-1200H |
Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm |
Max. Machine Speed | 120m/min | |||
Printing Speed | 100m/min | |||

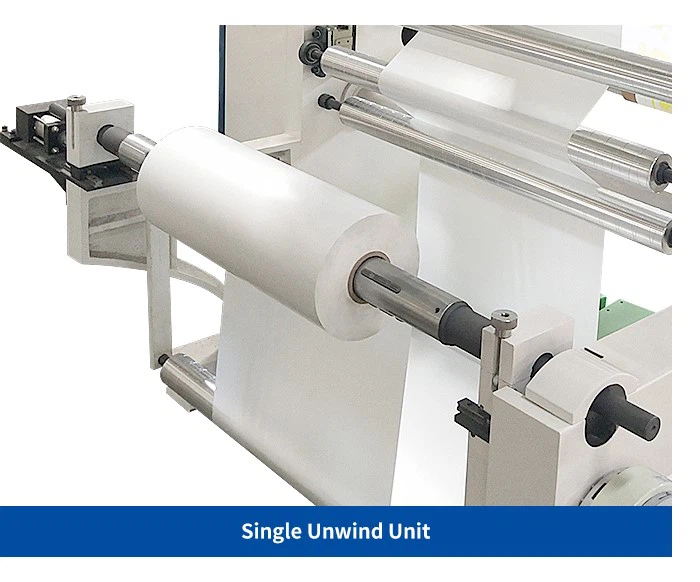

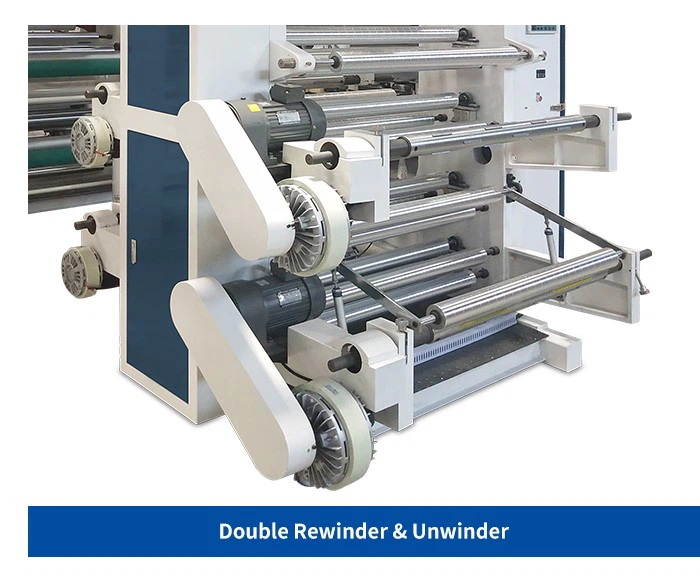

Max. Unwind/Rewind Dia. | φ800mm | |||
Drive Type | Gear drive | |||
Plate thickness | Photopolymer plate 1.7mm or 1.14mm (or to be specified) | |||
Ink | Water base ink or solvent ink | |||
Printing length (repeat) | 300mm-1000mm | |||
Range Of Substrates | LDPE; LLDPE; HDPE; BOPP, CPP, PET; Nylon, PAPER, NONWOVEN | |||
Electrical supply | Voltage 380V. 50 HZ.3PH or to be specified | |||
Printing Sample
Plastic bag flexo printing machine can print various plastic bag materials such as PE Bopp etc.
