In line flexo printing machine is a machine that uses flexible photosensitive resin plate and rubber plate as the base material, transfers ink through anilox roller, and prints the substrate with environmentally friendly ink.
Product Introduction
inline flexo is a machine that uses flexible photosensitive resin plate and rubber plate as the base material, transfers ink through anilox roller, and prints the substrate with environmentally friendly ink. Inline flexo printing machine prints
Parameter
CH6-1200A Series (Printing Material: PAPER)-6 Color | |
Model | CH6-1200A |
Maximum winding and unwinding diameter | ф1524 |
Inner diameter of paper core | 3″ OR 6″ |
Maximum paper width | 1220MM |
Repeat length of printing plate | 380-1200mm |
Plate thickness | 1.7mm or to be specified |
Thickness of plate mounting tape | 0.38mm or to be specified |
Registration accuracy | ±0.12mm |
Printing paper weight | 40-140g/m2 |
Tension control range | 10-50kg |
Maximum printing speed | 100m/min |
Maximum machine speed | 150m/min |
Performance Characteristics
1. inline flexo the tension is taper control technology to ensure the accuracy of overprinting.
2. Double rubber rollers press and feed paper, and the pressure adjustment is controlled by pneumatic components.

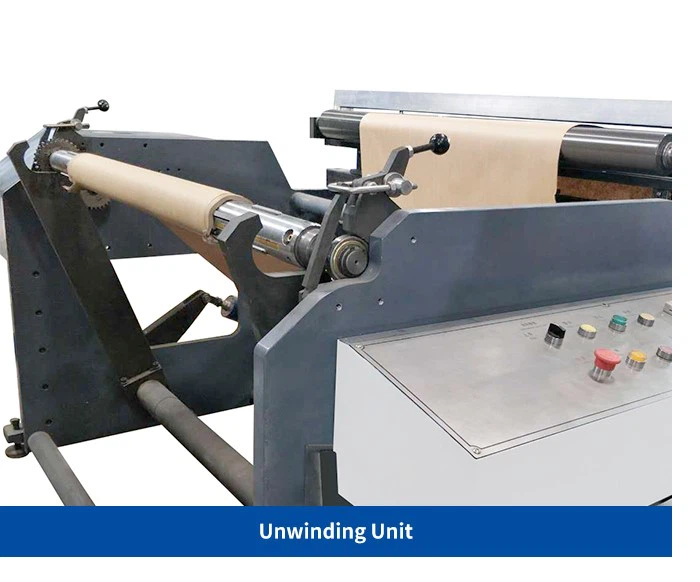

3. The unwinding traction unit adopts integral alloy cast iron double wall panels.
4. EPC system: can automatically correct the paper position; detection method: edge detection.

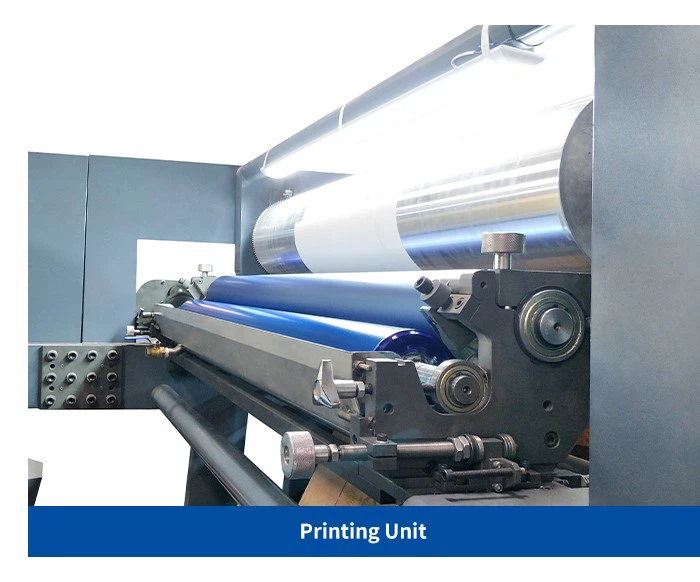

5. The printing unit adopts an integral alloy cast iron double wall panel and a 45-degree helical gear transmission structure; Drive method: Gear Drive.
